enDAQ Devices and MQTT

Controlling and communicating with Wi-Fi enabled enDAQ devices is done via MQTT, a lightweight protocol widely used in IoT applications.

A full setup for communicating with an enDAQ device over MQTT consists of three parts:

  1. An MQTT Broker. endaq.device requires the presence of a running MQTT broker supporting version 5.x of the protocol. The MQTT broker is not included in endaq.device and must be downloaded and installed separately. One such broker is Mosquitto; its open source version (EPL/EDL license) is cross-platform, small, and can be run locally or on a server. The specific details of setting up the MQTT broker are beyond the scope of this document; consult the Broker’s documentation for more information.

  2. An enDAQ Device Manager. MQTTDeviceManager is a thread/process, typically running in the background, that keeps track of devices connected via MQTT. It connects to the Broker and provides enDAQ-specific functionality, such as aiding in device discovery and tracking sleeping devices. Another feature the Device Manager provides is advertising (via mDNS/zeroconf), so the enDAQ devices and MQTTConnector (described below) can find the Broker. This can be run on the same machine as the MQTT Broker; for small setups and tests, it can be run locally.

  3. An MQTT Connector. MQTTConnector is the user-facing component that handles communicating with the Broker and Device Manager. Its primary function is creating and handling Recorder instances for MQTT-enabled devices.

Each component can be run on different machines, but the machines must be on the same network.

Quick Start

Start the MQTT Broker

The specifics of how you start the Broker depend on which Broker you installed, and how and where it was installed. These instructions assume Mosquitto has been installed and is not currently running.

Create a mosquitto.conf file

If you have not previously created a Mosquitto configuration file, you will need to do so. Here is a simple mosquitto.conf file:

listener 1883 0.0.0.0
allow_anonymous true

Start Mosquitto in ‘user space’

Starting Mosquitto in a standard user process (as opposed to running as a system service) is nearly identical in Linux, MacOS, and Windows. On a shell command line, enter:

mosquitto -v -c mosquitto.conf

  • In Windows, you may need to explicitly state the path to the mosquitto executable, e.g., 'C:\Program Files\mosquitto\mosquitto.exe'

  • -v turns on verbose output and is optional.

  • -c specifies the confgiguration file to use. If you are not in the directory containing your mosquitto.conf, you will need to provide its full path.

Start the MQTT Device Manager and Advertising

On the command line in another shell/terminal window, enter:

python -m endaq.device.mqtt.manager

  • If the MQTT Broker is running on a different computer, you will need to specify it by name or IP address, e.g.: python -m endaq.device.mqtt.manager -a 192.160.0.100

Configure the enDAQ device

Important

Some of these instructions will change once the firmware with MQTT functionality is finalized.

../_images/mqtt_config.png

  1. On your enDAQ device, in the SYSTEM directory, create an empty text file called devtest.txt. Note: if running Windows and ‘Hide extensions of known types’ is on (the default), the file should appear as devtest.

  2. Unplug the device, and plug it in again.

  3. In the enDAQ Lab Configure Device dialog, General tab, check Wi-Fi Connection. If already on, skip to step 6.

  4. Click ‘OK’ to exit the dialog, and when prompted to reset the device, click ‘Yes’.

  5. Once the device reappears in the list of devices to configure, configure it again.

  6. In the ‘Wi-Fi’ tab, select your Wi-Fi access point and enter its password (if not already selected).

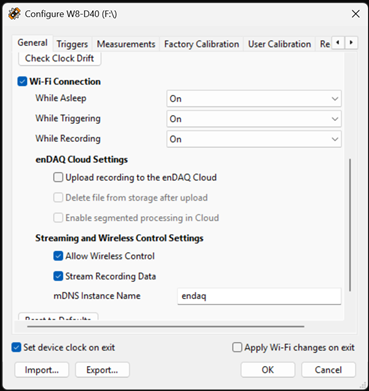

  7. In the ‘General’ tab, set the Wi-Fi options to match the image above:

    • ‘While Asleep’/’While Triggering’/’While Recording’ lists: All On

    • ‘Endaq Cloud Settings’ group: All unchecked

    • ‘Streaming and Wireless Control Settings’ group: All checked

    • ‘mDNS Instance Name’ field: enDAQ Remote Interface

  8. Click ‘OK’ to exit the dialog. If prompted to reset the device, click ‘Yes’. If not prompted to reset, unplug the device and plug it in again.

Note: With the ‘While…’ options set to ‘On’, Wi-Fi will be active while the device is unplugged, consuming a small amount of battery power.

Create an MQTTConnector and get a Recorder

MQTTConnector handles communication with the MQTT broker and manages MQTT-enabled instances of Recorder. It provides methods equivalent to the standard functions findDevice() and getDevices().

In the Python interactive console/REPL (run from the command line in another shell/terminal window, through an IDE, etc.):

>>> from endaq.device.mqtt.mqtt_interface import MQTTConnector
>>> con = MQTTConnector.find()
>>> con.getDevices()
[<EndaqW W8-E100D40 "Test device #1" SN:W0016827 (remote)>]
>>>
